Product Description

Framola™ Pergola Straight T Bracket

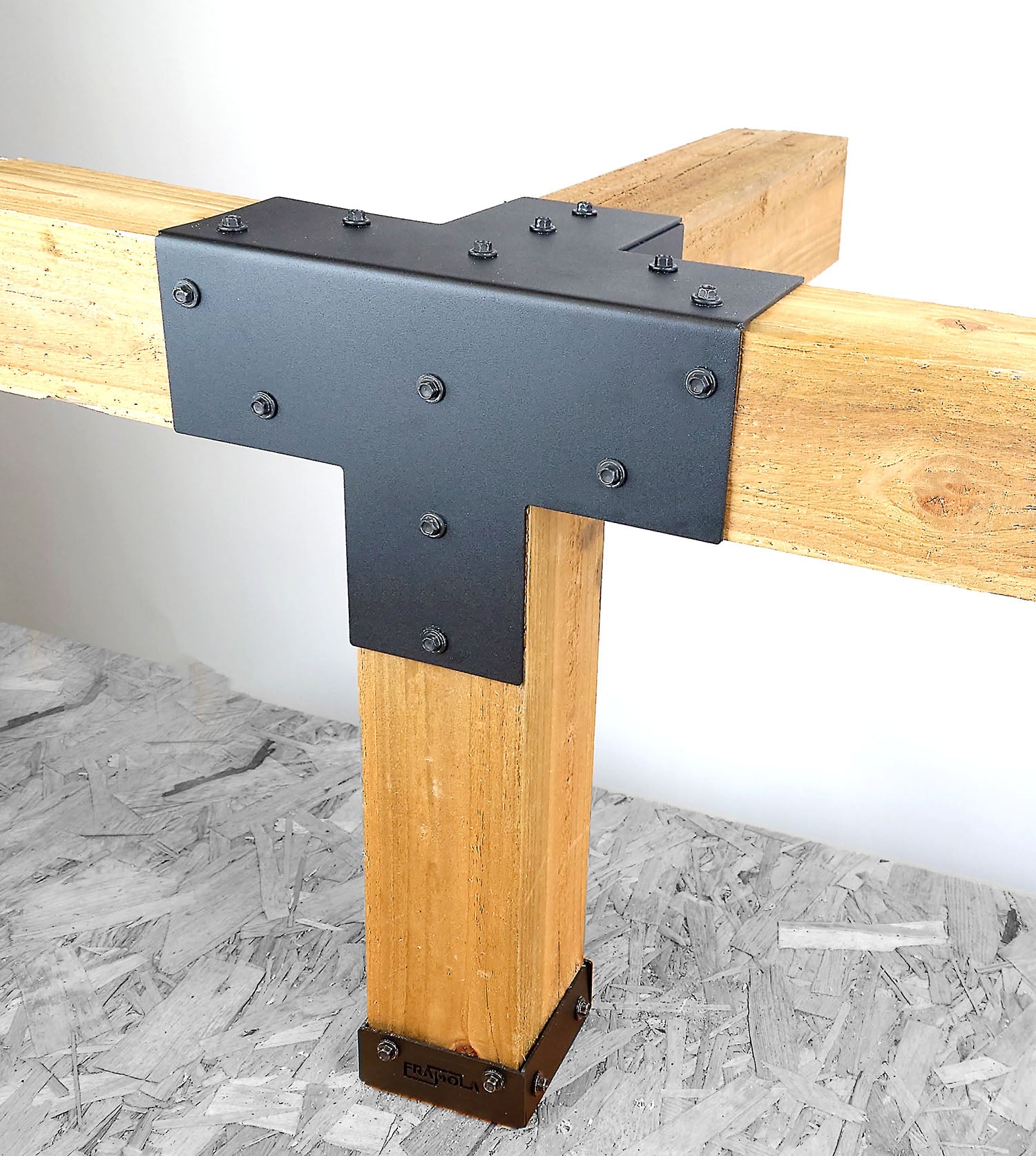

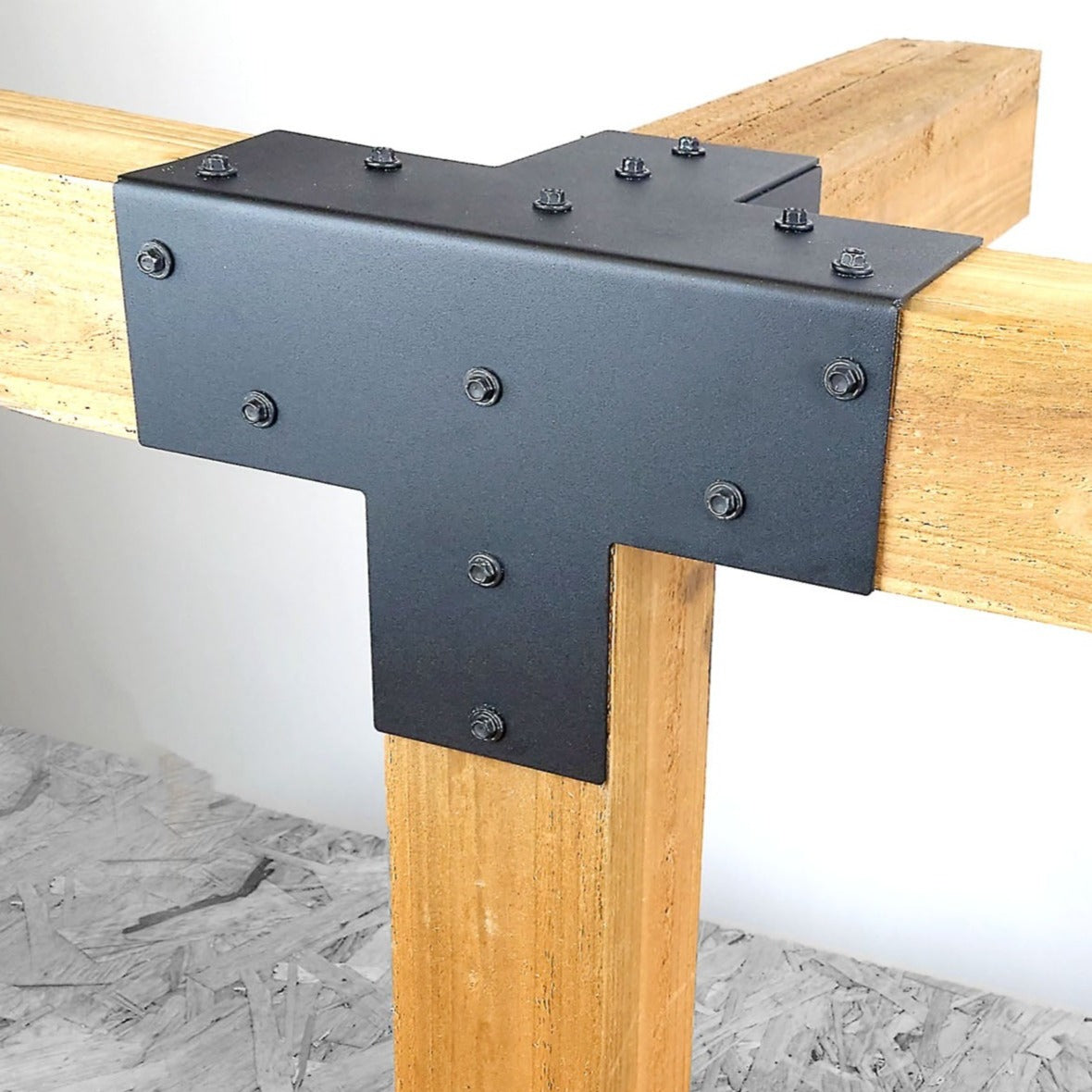

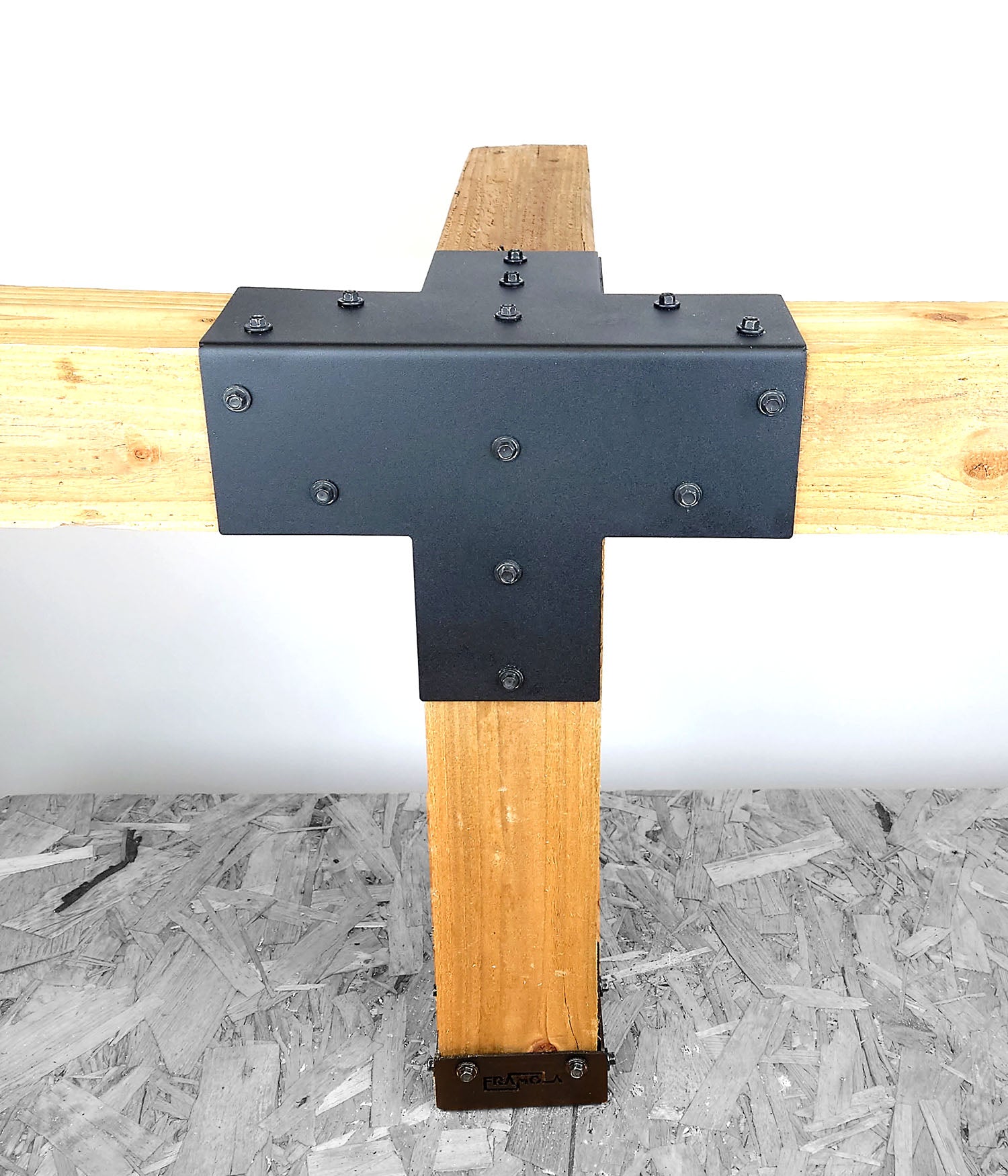

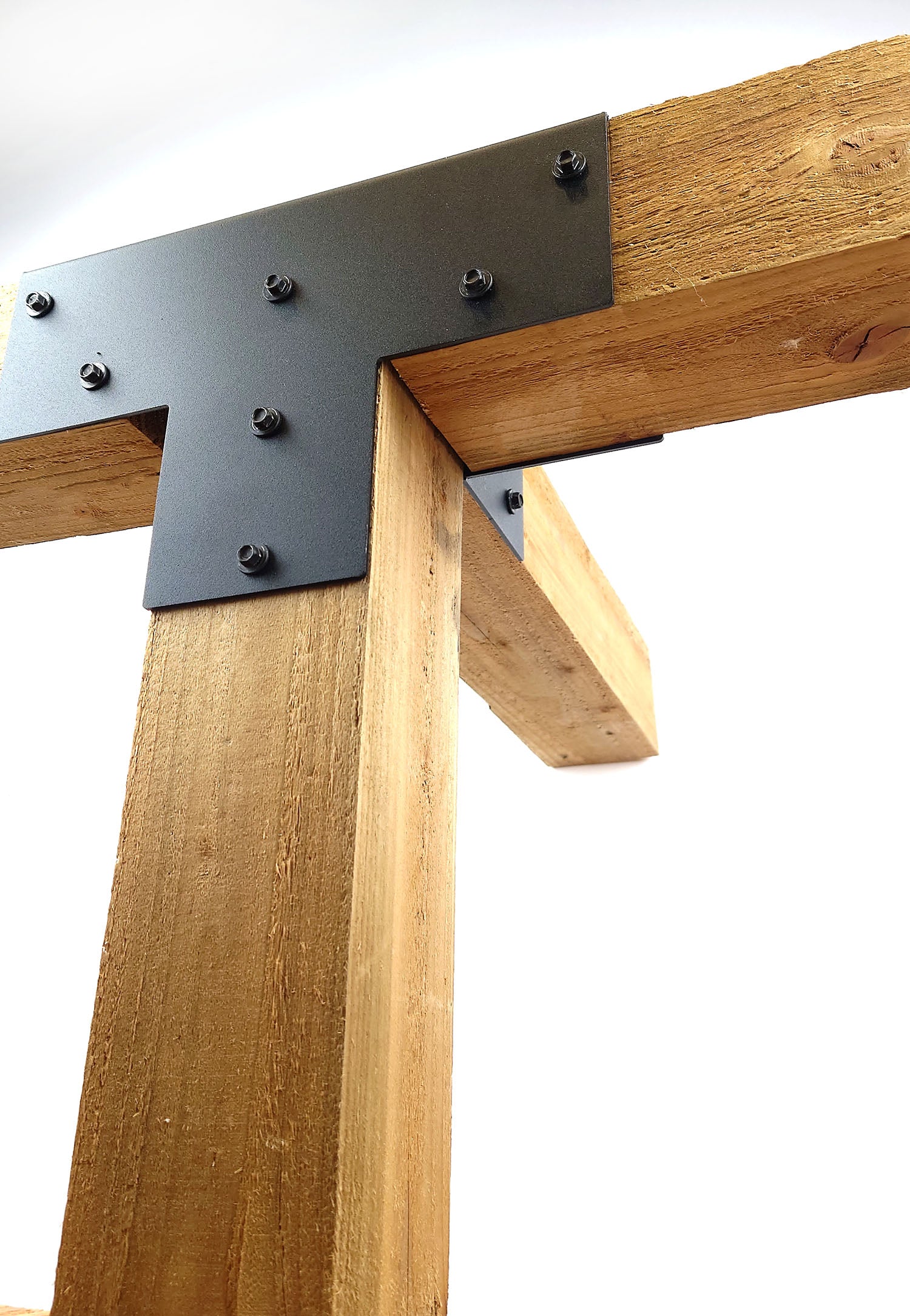

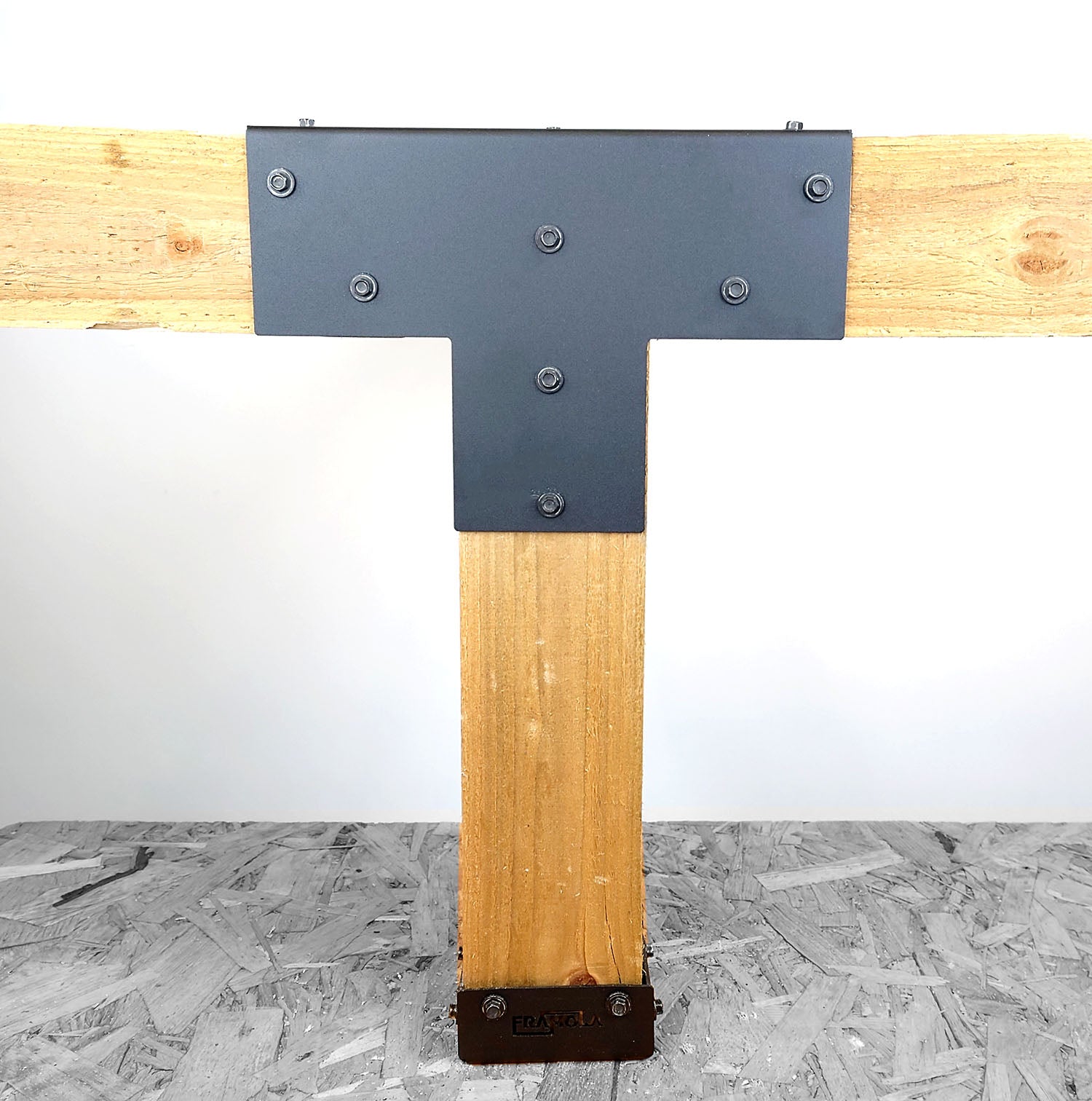

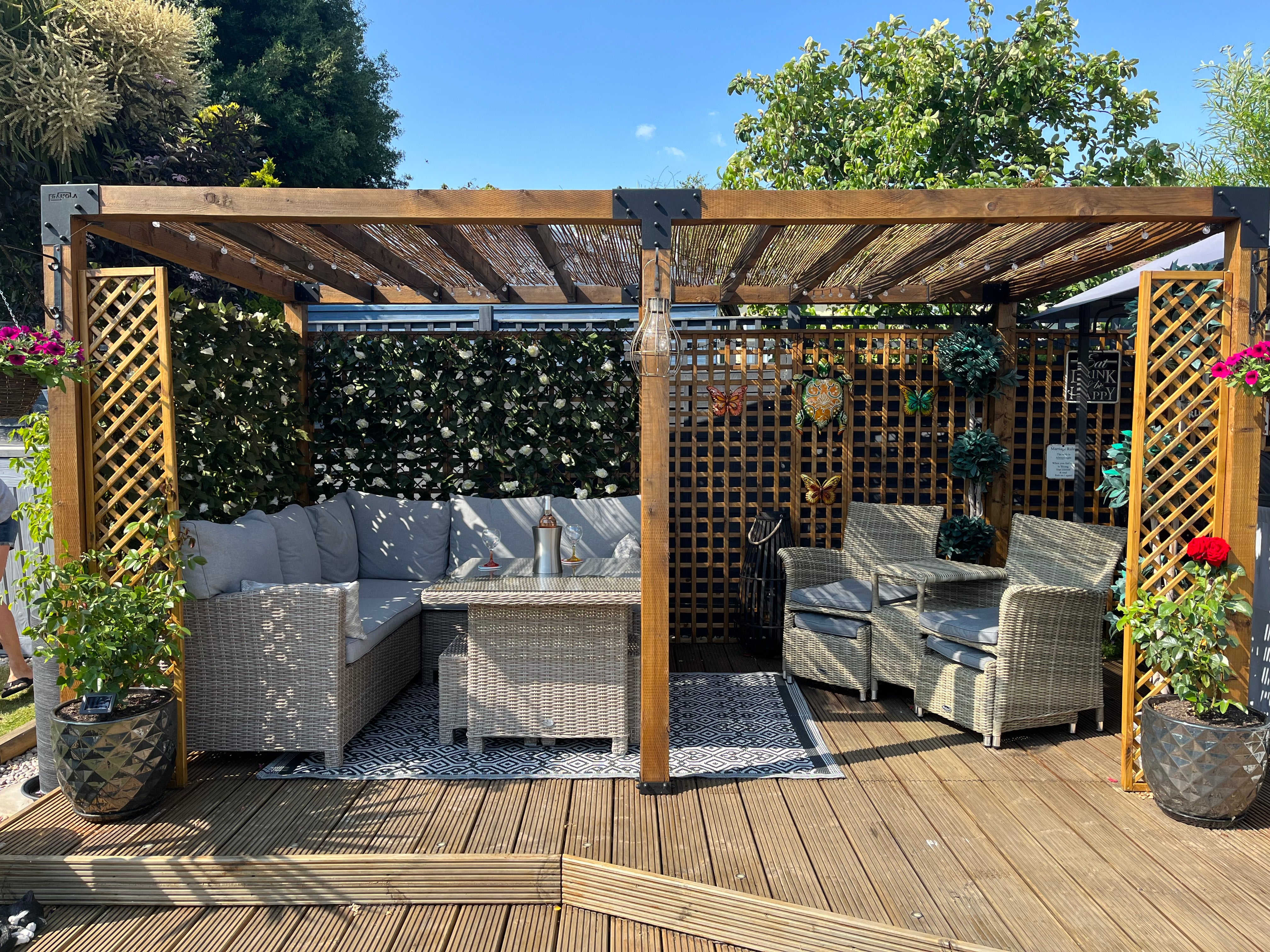

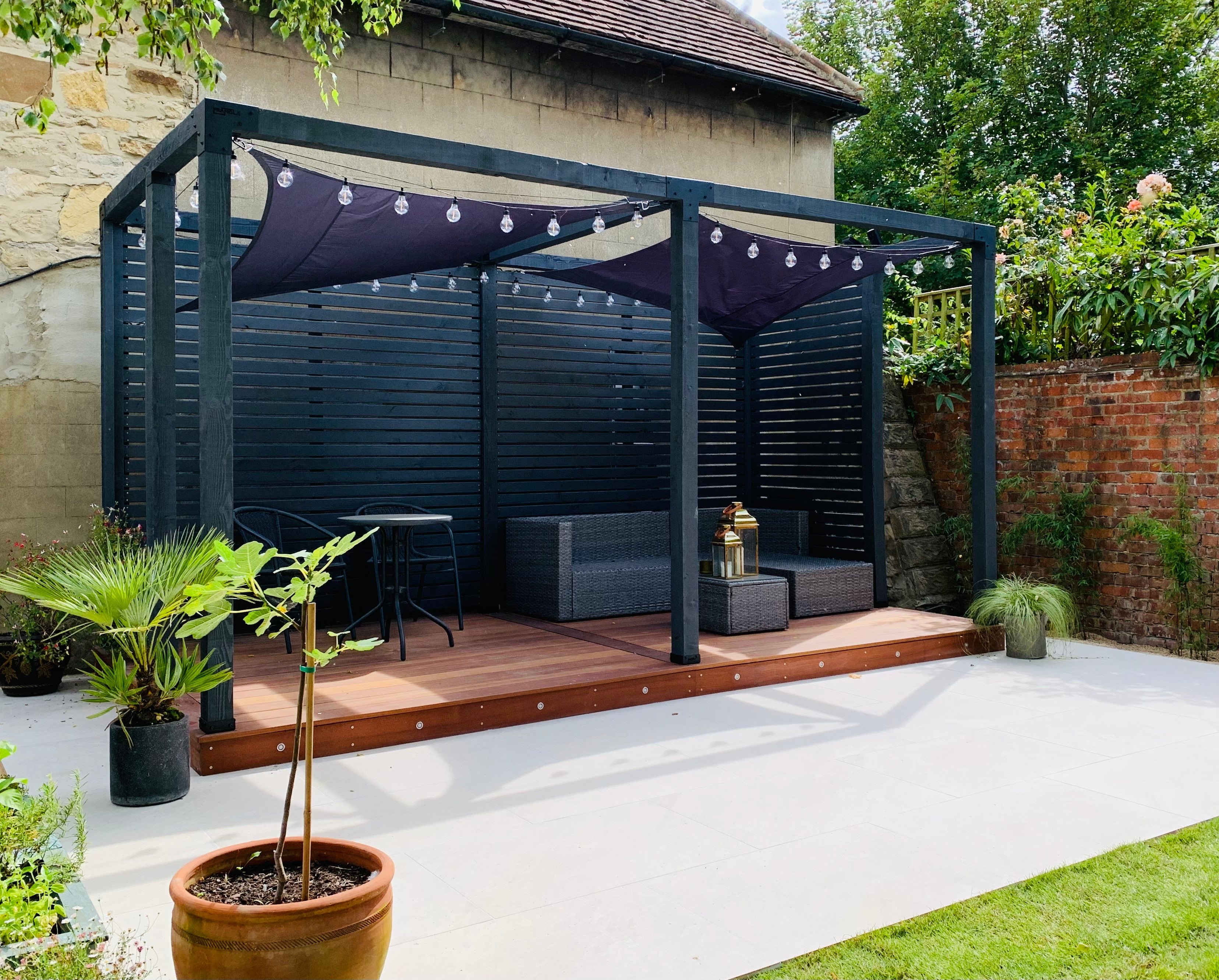

The Framola system is designed to make the construction and installation of Pergolas and Garden Structures as simple as possible. This Straight T-Shaped Bracket is suitable for connecting 4 pieces of wood to make a multi-bay Pergola, Pagoda or Gazebo. It can connect an upright post and 3 horizontal posts, forming a T shape at the top.

We offer 3 different sizes, with one for 3"/75mm timber or wood posts, one for 4”/100mm timber or wood posts and one for 6”/150mm posts. It is essential that you choose the right size for your fence posts, as the bracket may overhang the edges of the timber, or may not offer enough strength.

You also receive 2 Internal L-Brackets which are suitable for strengthening the internal joins between the timber fence posts, ensuring a strong installation all round.

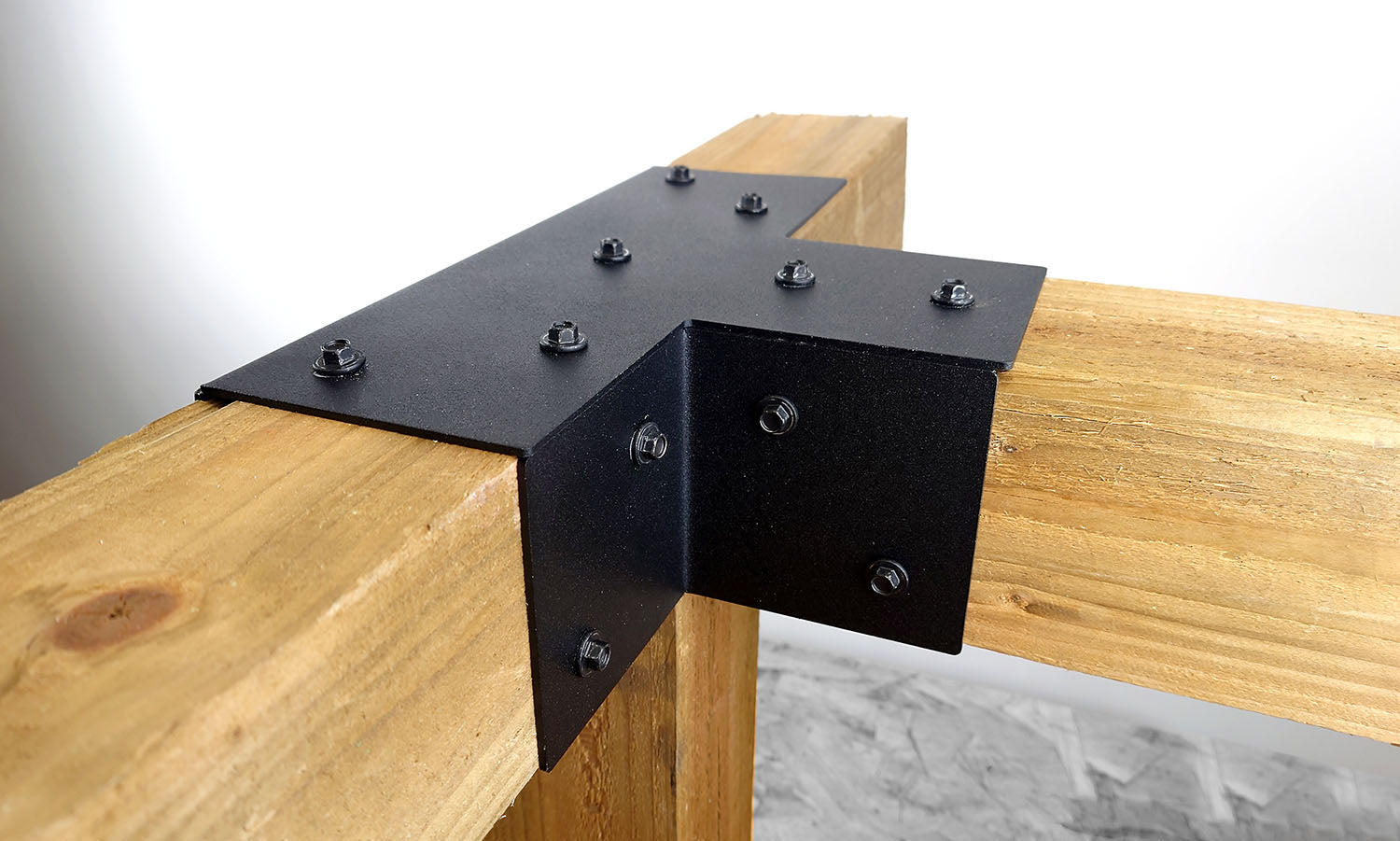

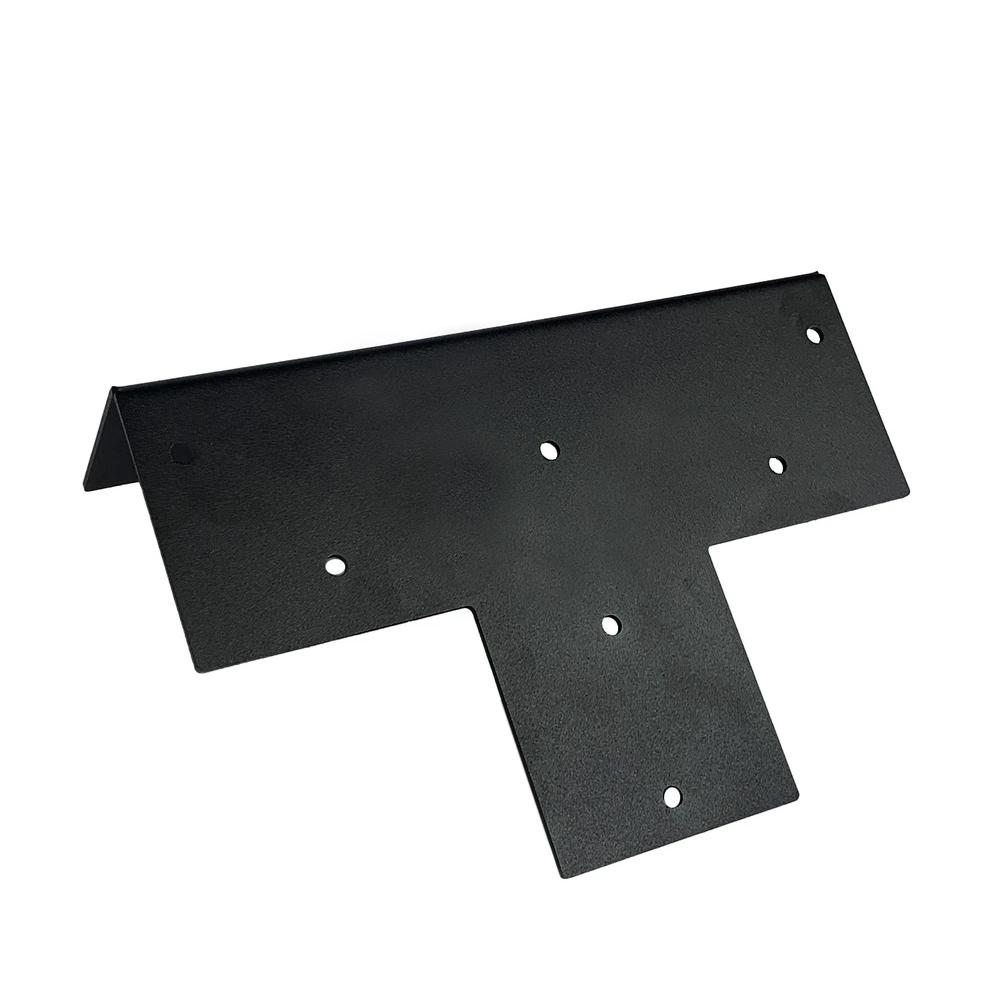

The T-Bracket features 14, carefully positioned, “staggered” screw holes to allow the screws not to collide when installing with other parts of the Framola kit. Each screw hole is 7.5mm wide to comfortably allow for timber railway sleeper screws to be used.

As with other Framola products, this Pergola Straight Bracket comes with a textured black finish, which is both pleasing in appearance, as well as helping the outer of the bracket remain durable and hard-wearing. The bracket itself is made using 2.5mm Heavy Duty Galvanised Steel, which will remain rust-free forever, even in the event of the coating being damaged.

Getting the right kit:

To get the right Framola kit for the size of wood you are using, please select from the options "Suitable for", this will allow you to select between 3"x3" (75mm x 75mm), 4"x4" (100mm x 100mm) posts or 6"x6" (150mm x 150mm) posts.

Key features:

1 x T-Bracket and 2 x Internal L-Brackets provided.
Crafted from 2.5mm Thick Heavy Duty British Steel
Coated in a textured black coating, for a durable, hard-wearing finish which looks great.
Corner-Bracket features 14 screw holes, each measuring 7.5mm in diameter to allow you to use Framola Timber Railway Sleeper Screws for installation.
Manufactured in the United Kingdom using British-Sourced Materials.
3 sizes available to ensure the right bracket for your wood.

Dimensions

3" / 75mm Posts:

Width: 224mm
Height: 155mm (either side of the fold)
Depth: 155mm (either side of the fold)

4" / 100mm Posts:

Width: 300mm
Height: 203mm (either side of the fold)
Depth: 203mm (either side of the fold)

6" / 150mm Posts:

Width: 455mm
Height: 305mm (either side of the fold)
Depth: 305mm (either side of the fold)

Going for a custom colour?

Choose from our selection of RAL colours for a totally custom bracket, match your home or garden. Please make sure to leave us a note in your order comments to state which colour you would like, we have included a chart in the product images to help you select.

Please allow up to 3 days for colours other than black

Installation Tips

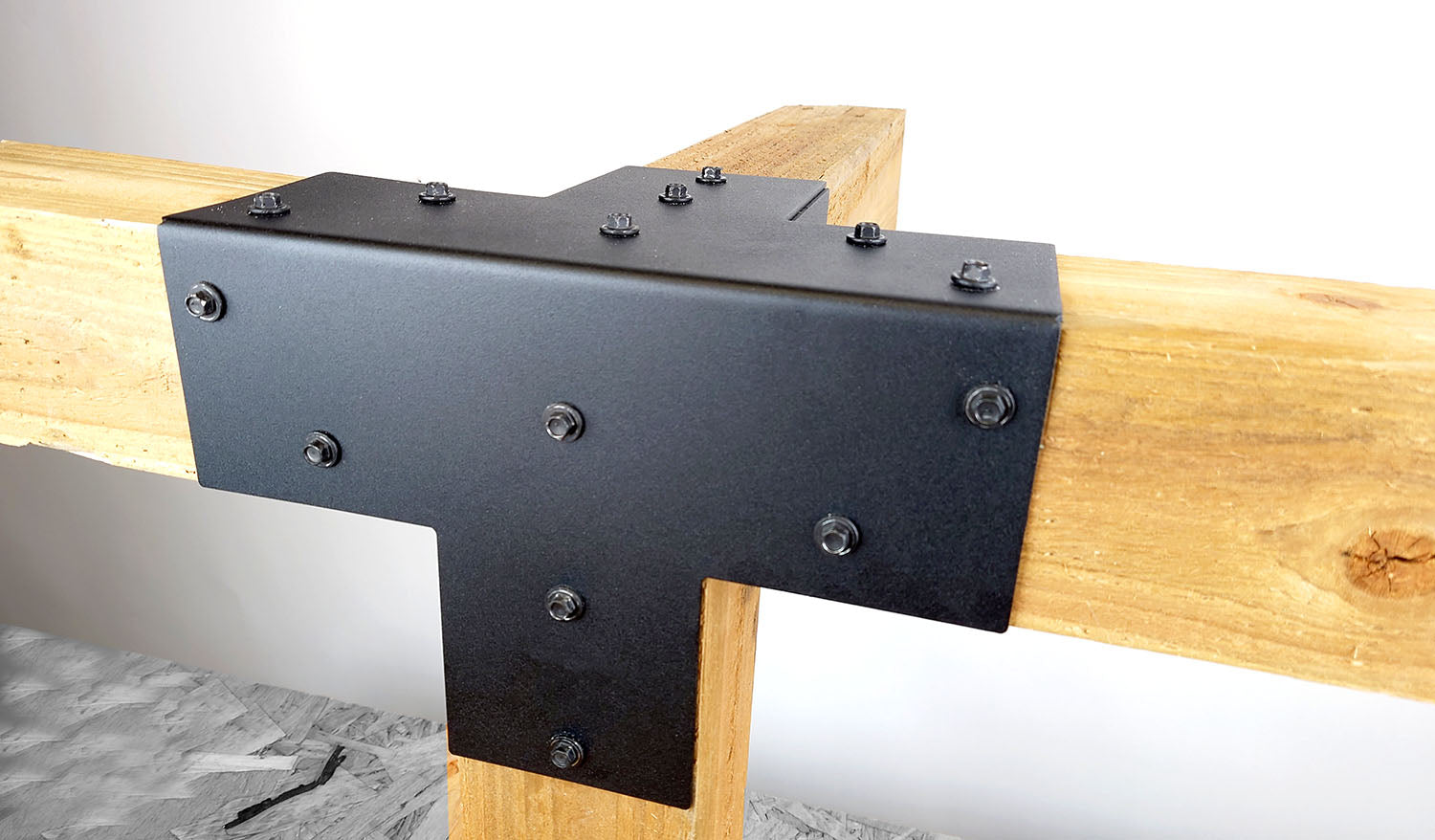

Ensure that the upright beam on the pergola is flush straight with the top part of the bracket. The width of the wood will be the same as the lower part of the bracket so is simple to line up horizontally.
The two horizontal beams should be pushed towards both the upright and the edges of the bracket to ensure it is flush.
The final horizontal beam should be pushed up flush against the upright, once again using the small portion of the bracket to line up the position of the wood.

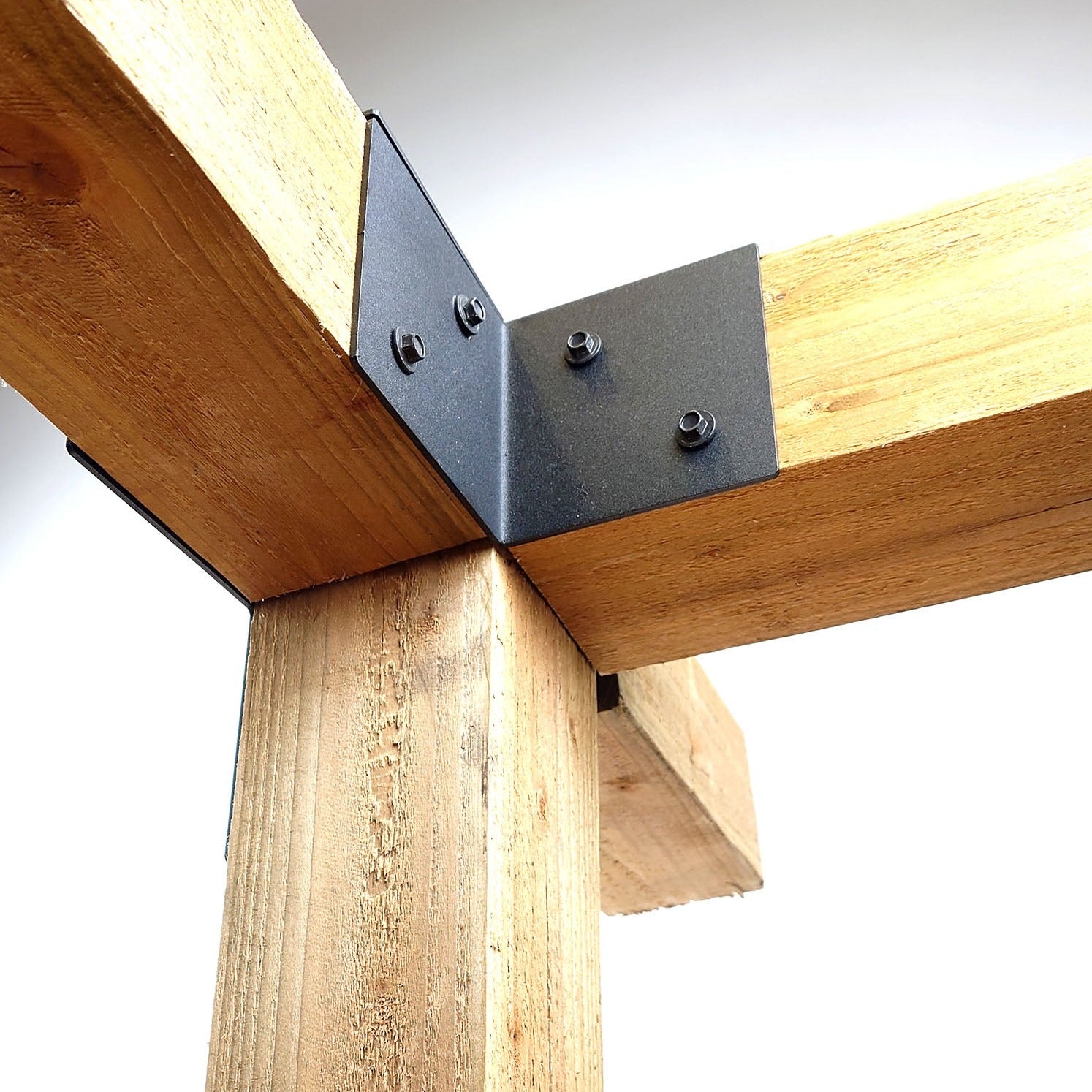

The internal L-Brackets should then be screwed to the internal joins of the wood to ensure a secure installation.

How to Install the T-Bracket

You will receive:

1 x Framola Pergola Straight Bracket (T-Bracket)
2 x Framola Internal Pergola L-Bracket

Please note:

We have tested Framola brackets to work up to lengths of 3m wood when using 6" posts, we cannot guarantee the Framola brackets will work with any longer lengths.
