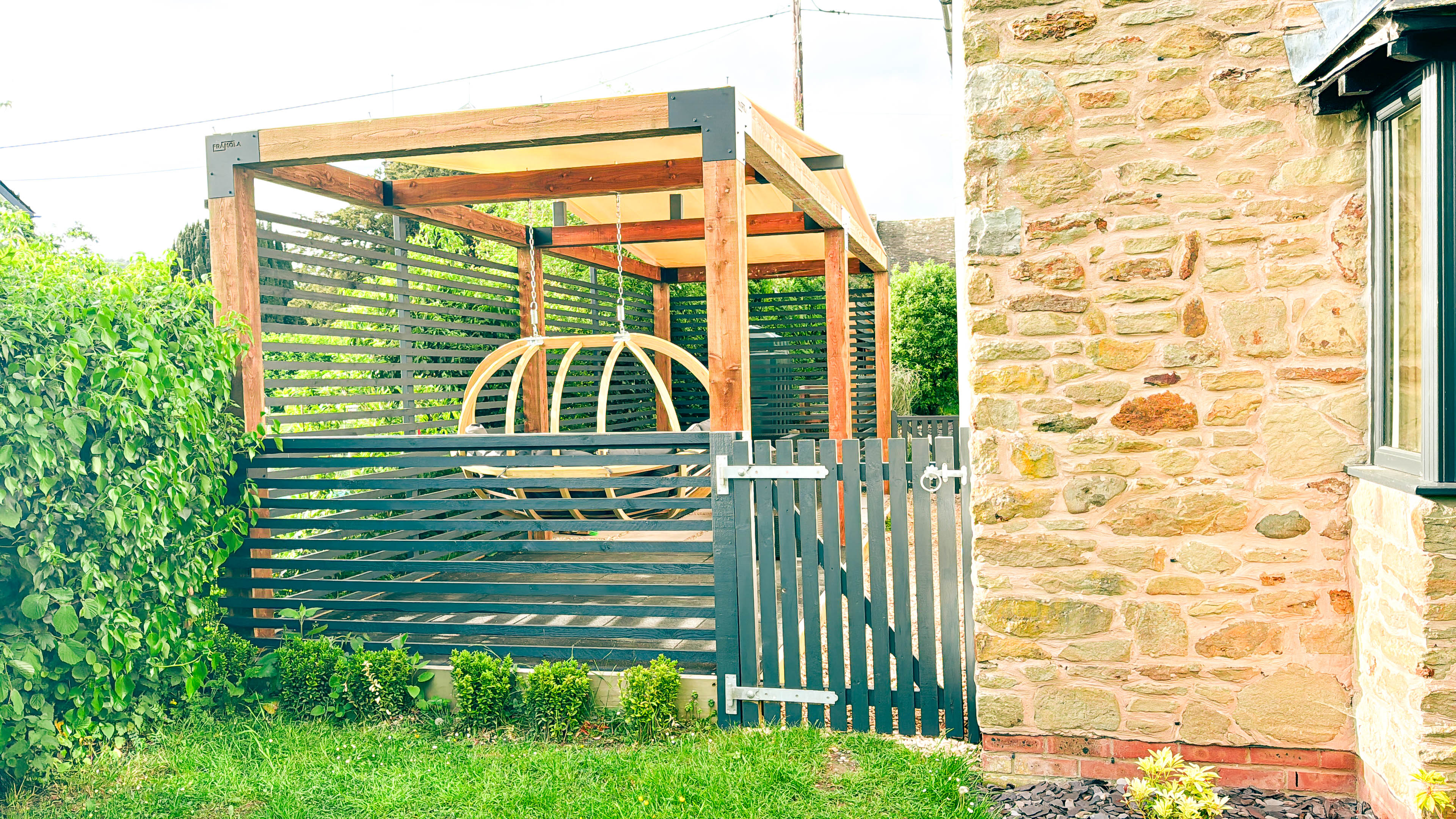

SEE OUR FRAMOLA CUSTOMER PHOTO GALLERY

SKU: IDB2281x2

Barcode: 5056482458391

Regular price: £29.95
Regular price
Sale price: £29.95
Unit price: per

Price displayed above includes VAT

Pack Size: Pair of Channels Pair of Channels 2 Pairs of Channels

Colour: Black Black Anthracite Grey

Product variants

Framola™ Pergola Privacy Wall Installation Channels for 2" Timber

£29.95

Choose Options

Quantity:

Framola™ Pergola Privacy Wall Installation Channels for 2" Timber

£29.95

Pack Size: Pair of Channels Pair of Channels 2 Pairs of Channels

Colour: Black Black Anthracite Grey

Product variants

Framola™ Pergola Privacy Wall Installation Channels for 2" Timber

The Framola system is designed to make the construction and installation of Pergolas and Garden Structures as simple as possible. These Privacy Wall Installation Channels allow you to mount 2" thick pieces of timber to make Privacy Walls to surround your Pergola. Install these against the uprights of your Pergola and then slot wood down into the channels, screwing them in place at the desired distance, leaving small or large gaps between each slat.

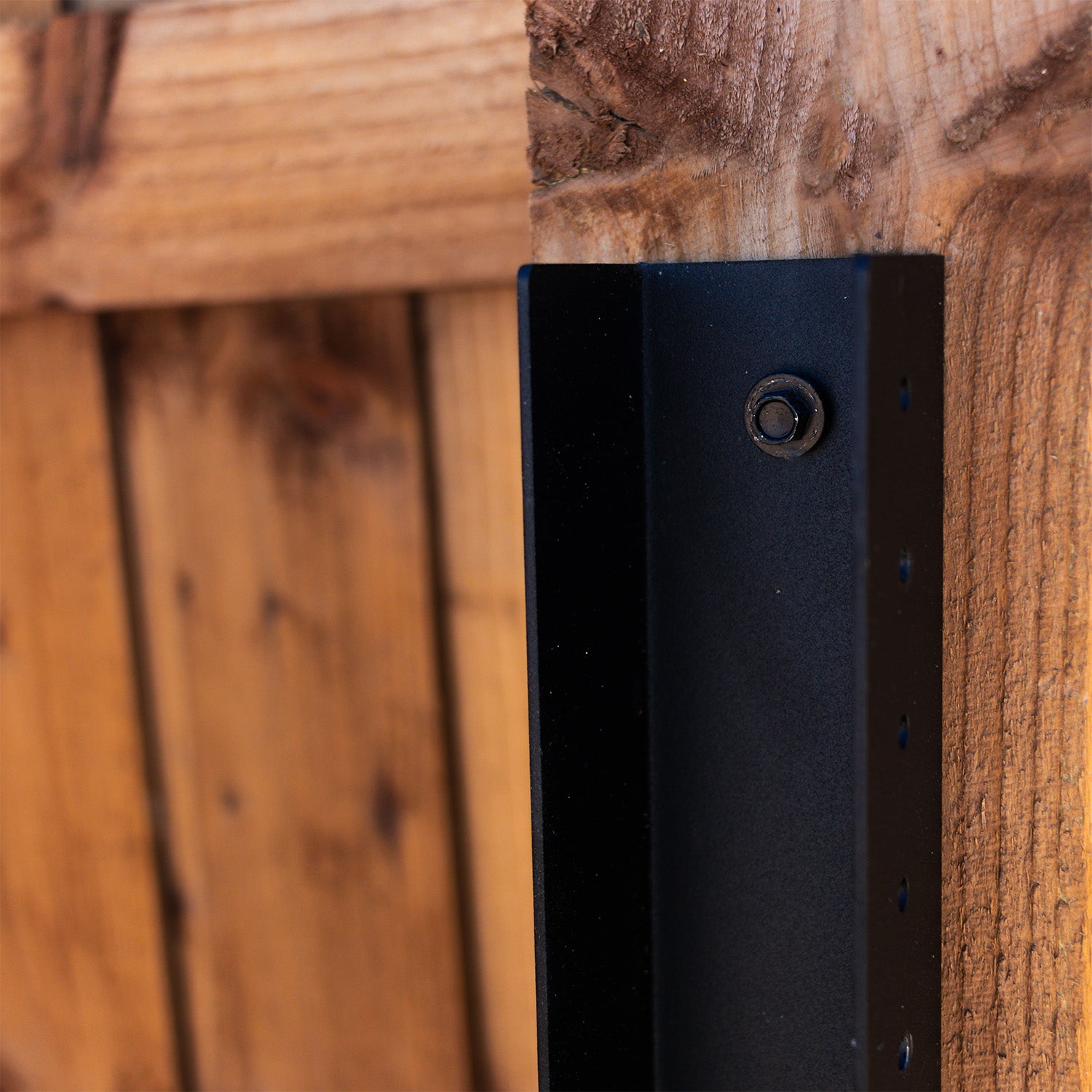

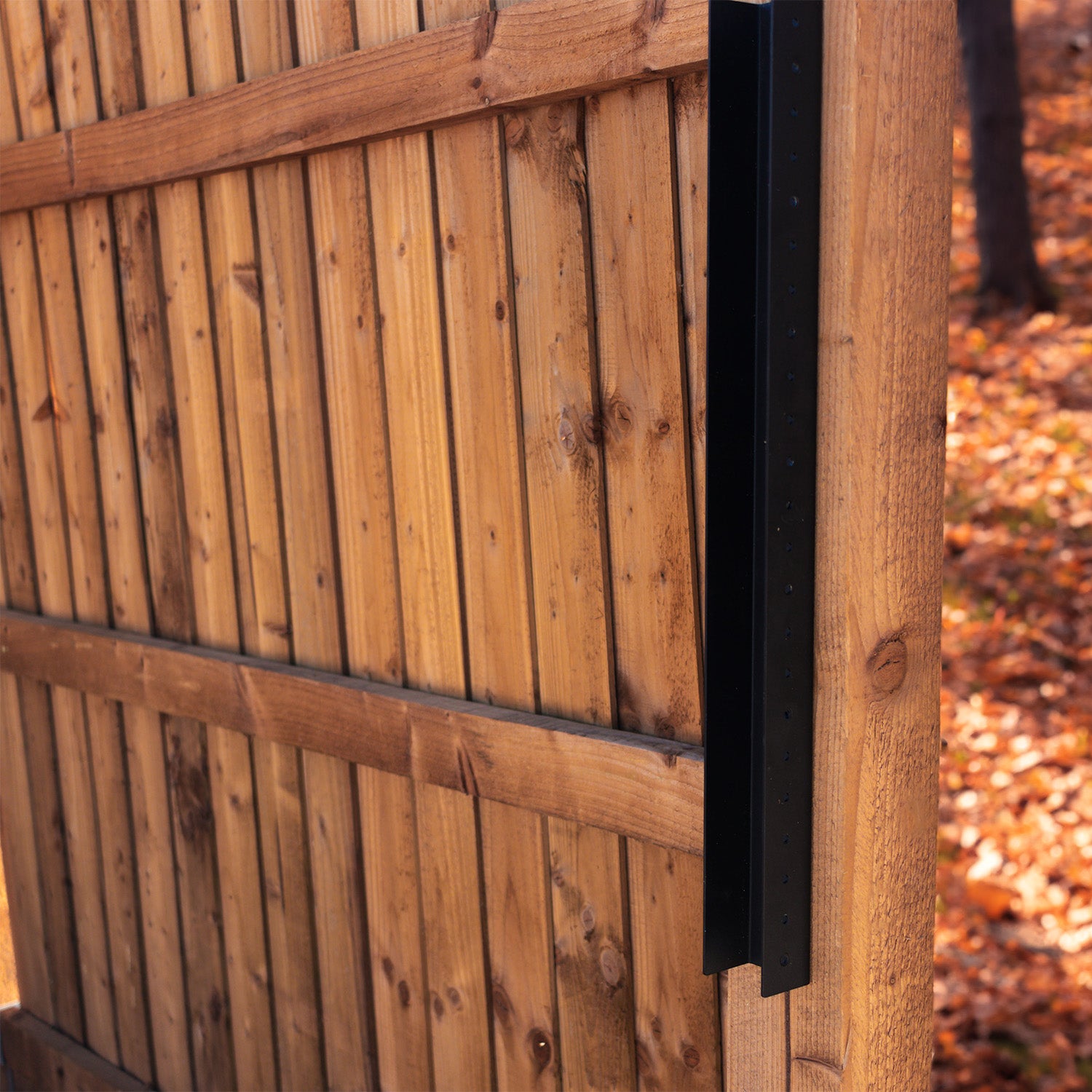

These channels are easy to install. You need to measure the distance between each upright post on your pergola, and cut your wood to length. Simply screw these channels onto the upright posts on your Pergola using the 5 screw holes at the back. We recommend using Framola Timber Sleeper Screws for these, as they are 7.5mm wide, the perfect size for our screws. Be sure that they are level on the opposing upright, otherwise the slats might not be aligned correctly.

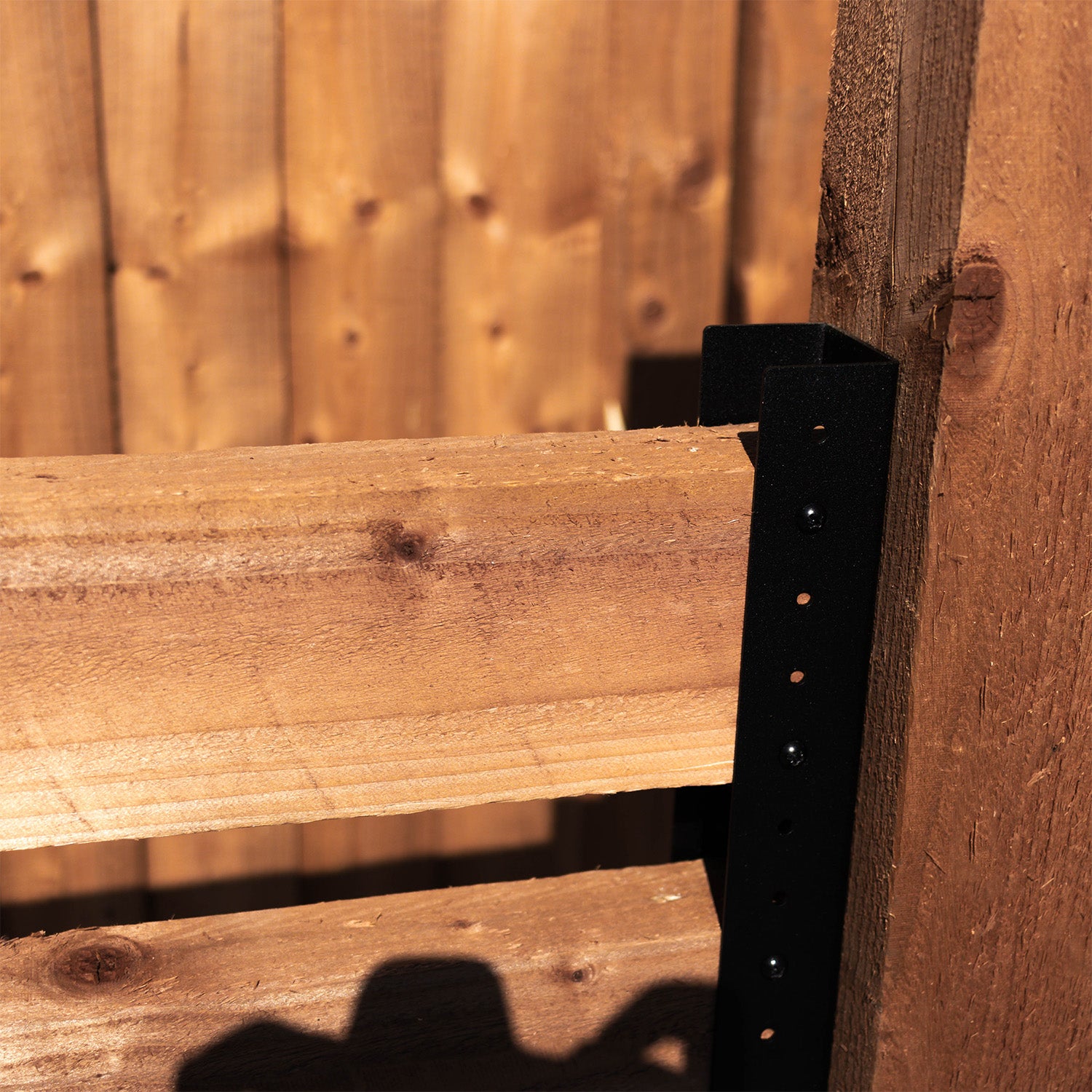

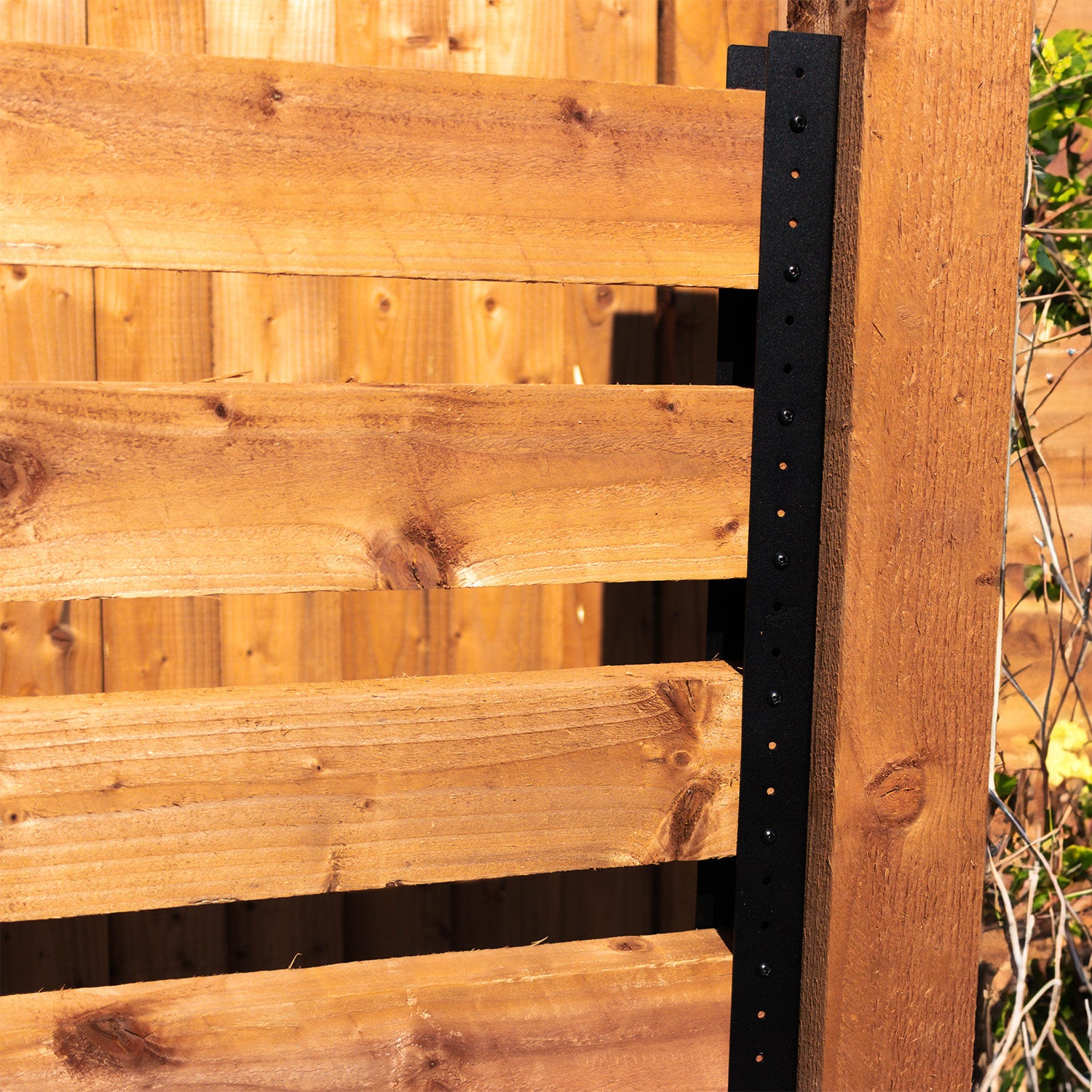

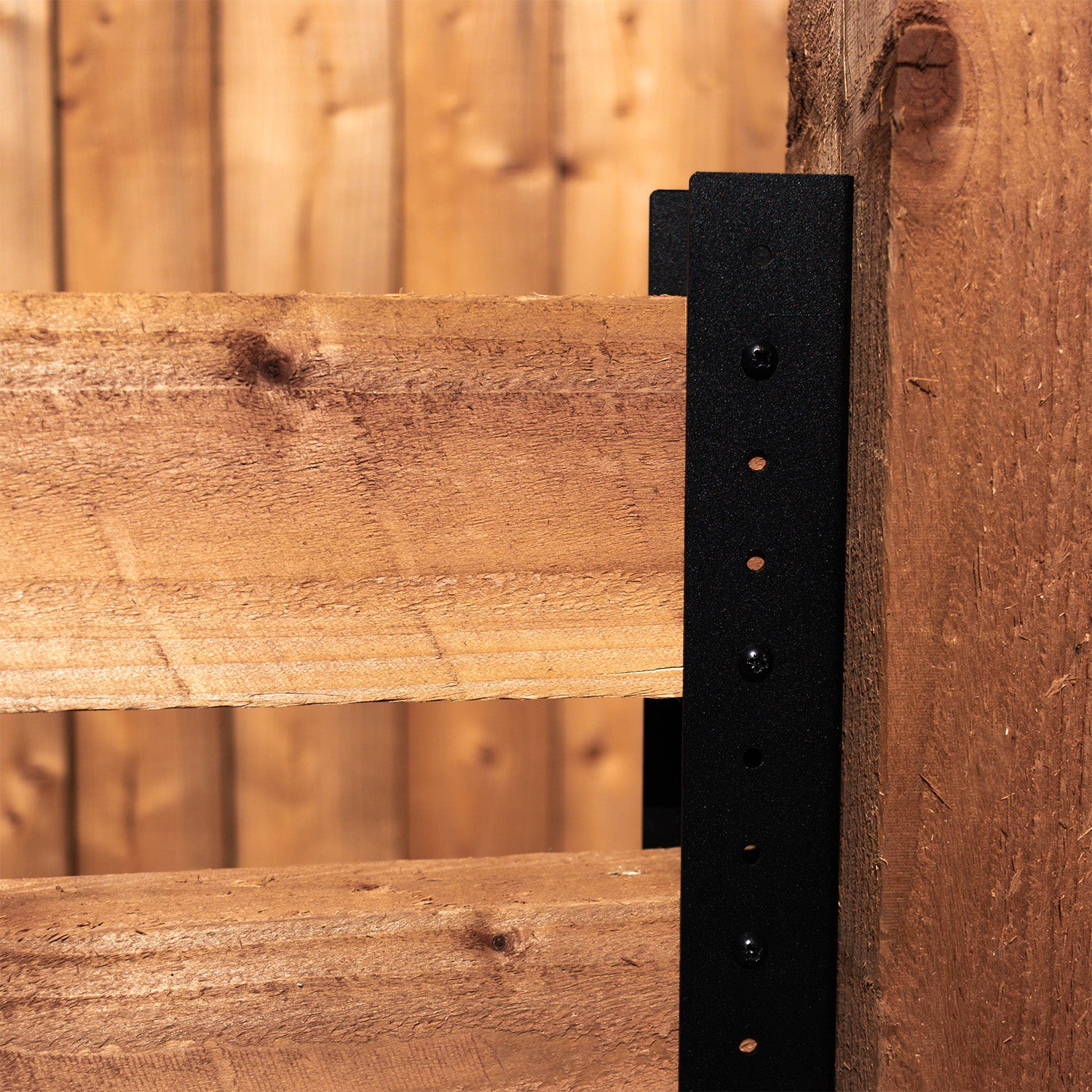

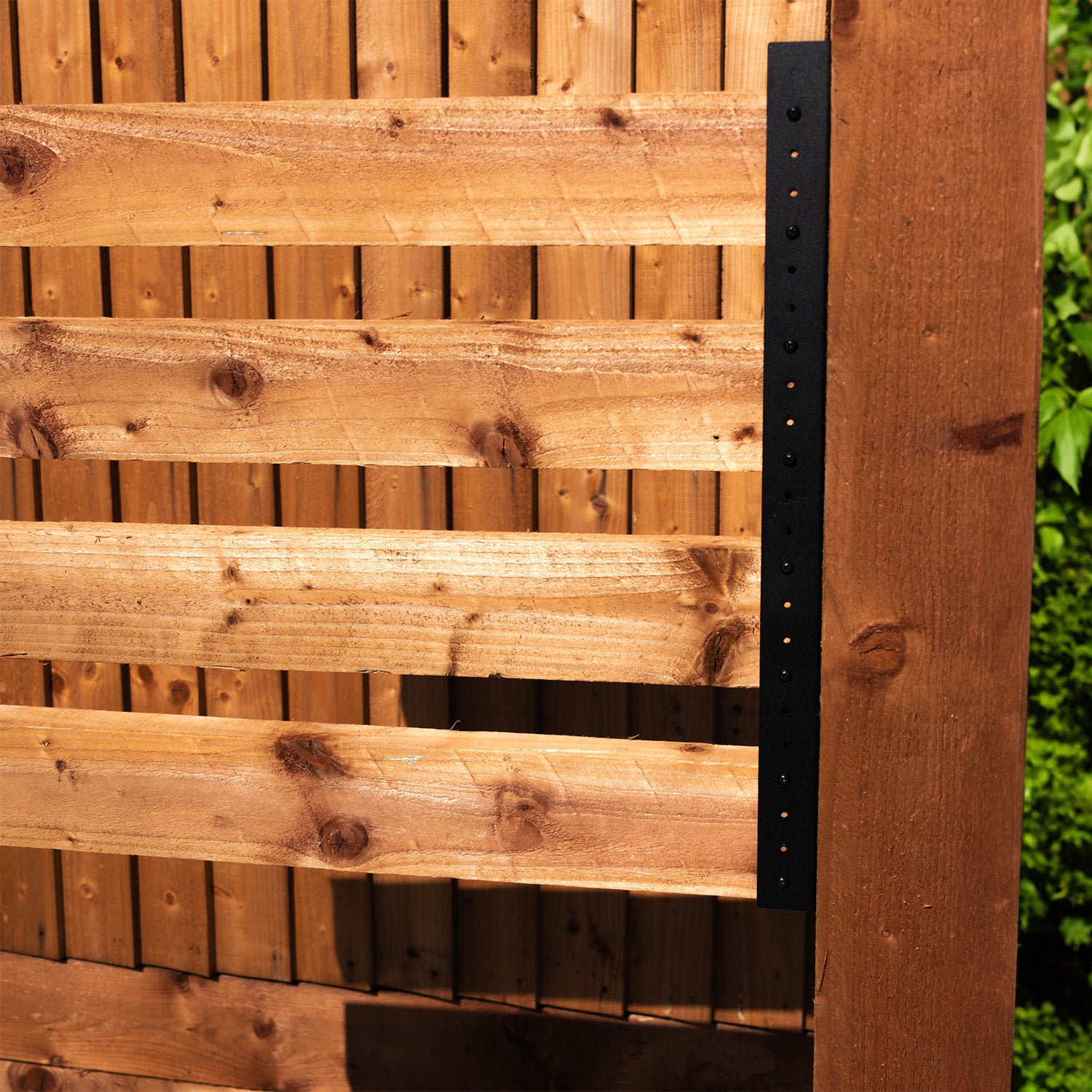

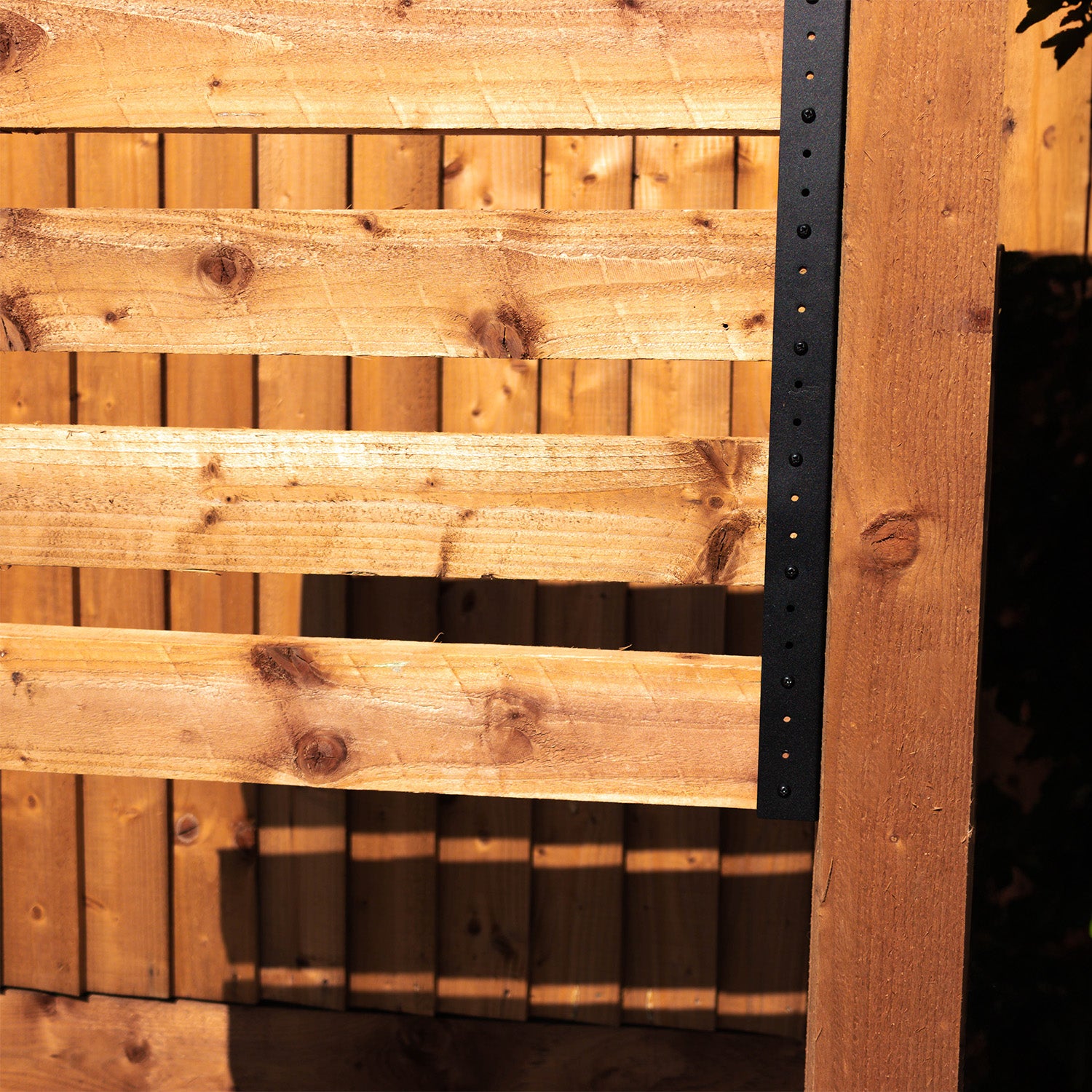

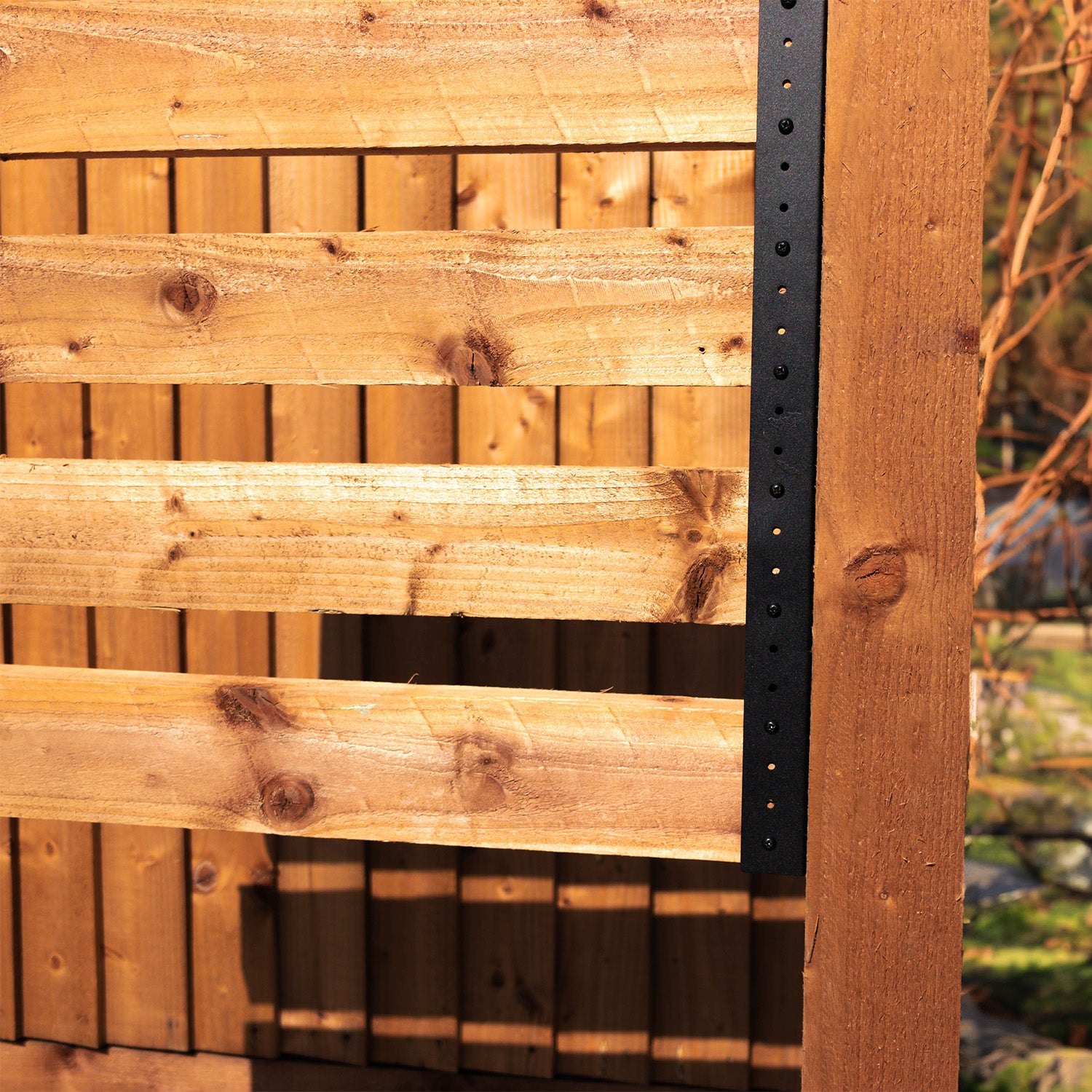

Once the channels are both installed, you can begin slotting wood into them. This wood can be secured using one or two of the 23 holes down the edge of the bracket. The holes are 25mm apart from centre-to-centre. These holes are 5mm and suitable for using smaller, black woodscrews to secure. These holes are only on one side, allowing the screws to be only partially visible on one side of the channel, hiding them from view if aesthetics is a priority. You can install the slats as close or far as you want. Installing them close together will ensure higher privacy, but spacing them apart will allow additional light to come through into your Pergola.

The channel is 590mm tall, meaning you can stack them on top of each other to make taller privacy walls. For a standard 3m tall Pergola, we would recommend 5 channels on each upright.

As with other Framola products, these Pergola Privacy Wall Installation Channels come with a textured black finish, which is both pleasing in appearance, as well as helping the outer of the bracket remain durable and hard-wearing. The bracket itself is made using 2.5mm Heavy Duty Galvanised Steel, which will remain rust-free forever, even in the event of the coating being damaged.

We designed these brackets in the United Kingdom and each one is manufactured at our premises in Norfolk.

Key Features:

Sold as a pair of Pergola Privacy Wall Installation channels to allow you to fix slats onto both ends.

Install on opposing uprights at the same level, then slot wood into the top and secure it in place.

Crafted from 2.5mm Thick Heavy Duty British Steel

Coated in a textured black coating, for a durable, hard-wearing finish which looks great.

Features 5 large screw holes for installing on the uprights.

Features 23 smaller holes for securing the slats in place at 25mm intervals.

Manufactured in the United Kingdom using British Steel.

Dimensions

Width: 45mm

Height: 590mm
